Development Trends of Passenger Ropeways: Innovation of Chairlifts, Baskets and Gondolas

Fixed-grip single-loop chairlift ropeways are widely used for sightseeing tourism in China. Unit types include single-seat, double-seat and triple-seat chairs, plus open baskets and enclosed gondolas.

A closed hauling rope loops over drive and deflection wheels. Fixed grips fasten chairlifts to the rope. Intermediate supports with sheave sets hold the rope stable. Passengers board and alight at station fronts. Carriers cannot loop around terminal wheels.

1. Core Technical Parameters

- Typical section length: 300-2000 m, ideally under 1000 m - Max height difference: 700- 900 m - Maximum climbing angle: ≤45° - One-way hourly capacity: up to 900 passengers - Short construction cycle; projects with moderate traffic can recover investment within 3-5 years.

2. Features of Basket and Gondola Ropeways

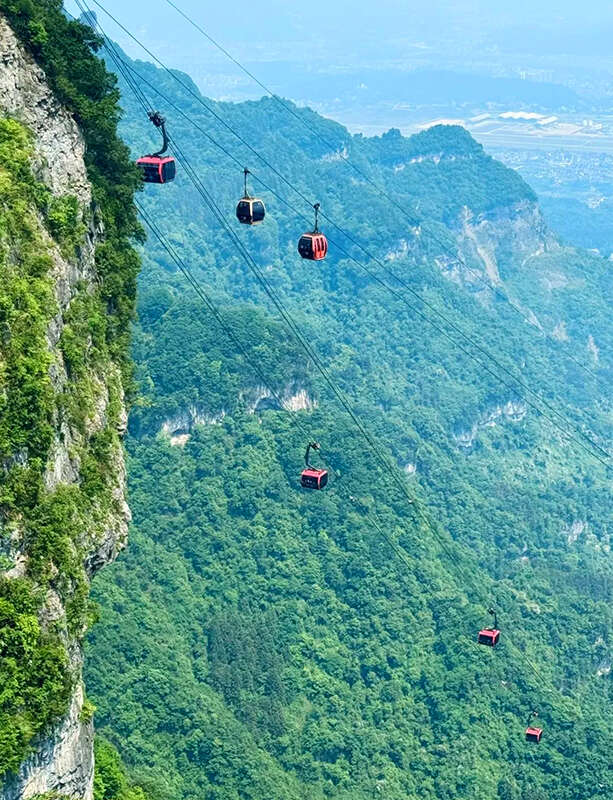

Basket and gondola ropeways are variants of fixed-grip chairlift systems. - Baskets deliver improved comfort and safety. Maximum ground clearance reaches 25 m. - Enclosed gondolas shield riders from sun, wind and rain. Max ground clearance up to 45 m. Most hold two passengers and adopt guiding devices for stable operation.

Conclusion

Chairlift, basket and gondola ropeways are cost-effective and terrain-adaptable, remaining popular options for small-and-medium scenic spots.
